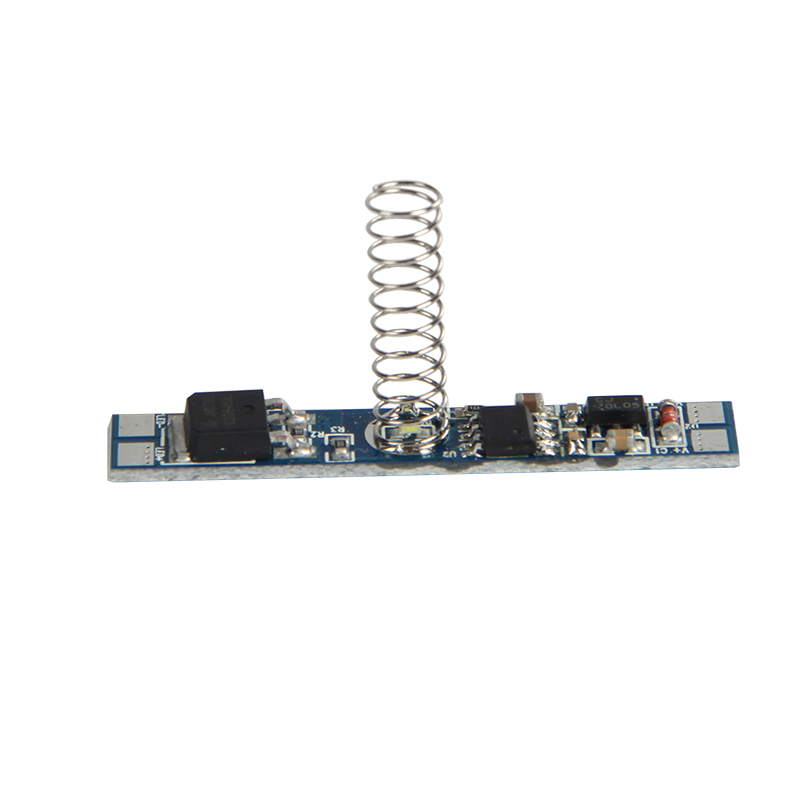

0V Memory Touch Switch Dimmer
Functions
- Switches on and off with dimming; the brightness is remembered and restored within 3 seconds.
- Input and output 12–24 V DC, 8 A: about 96 W at 12 V and 192 W at 24 V.

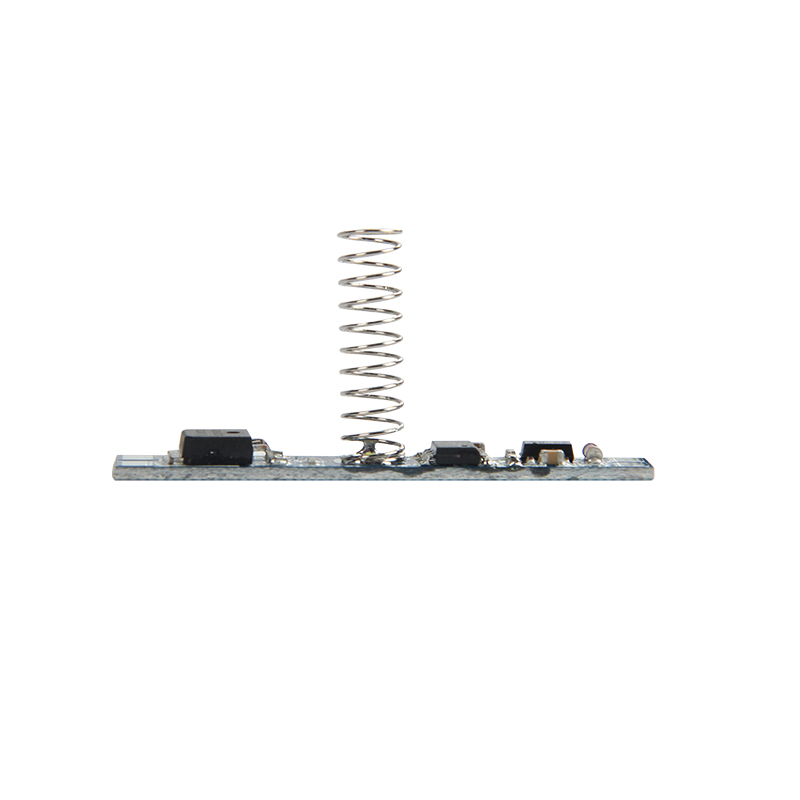

- Spring height 12 mm.

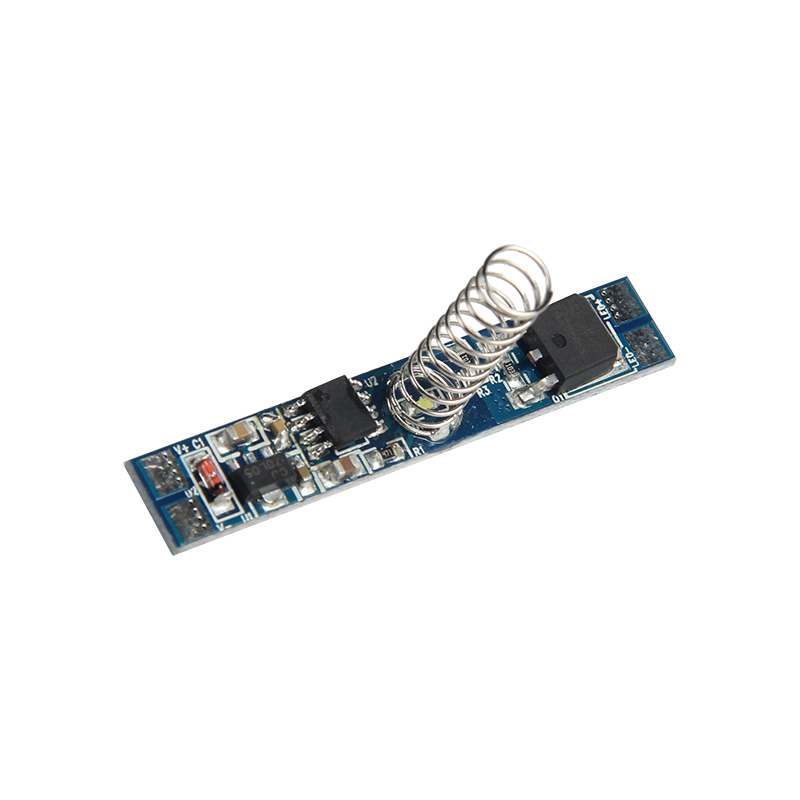

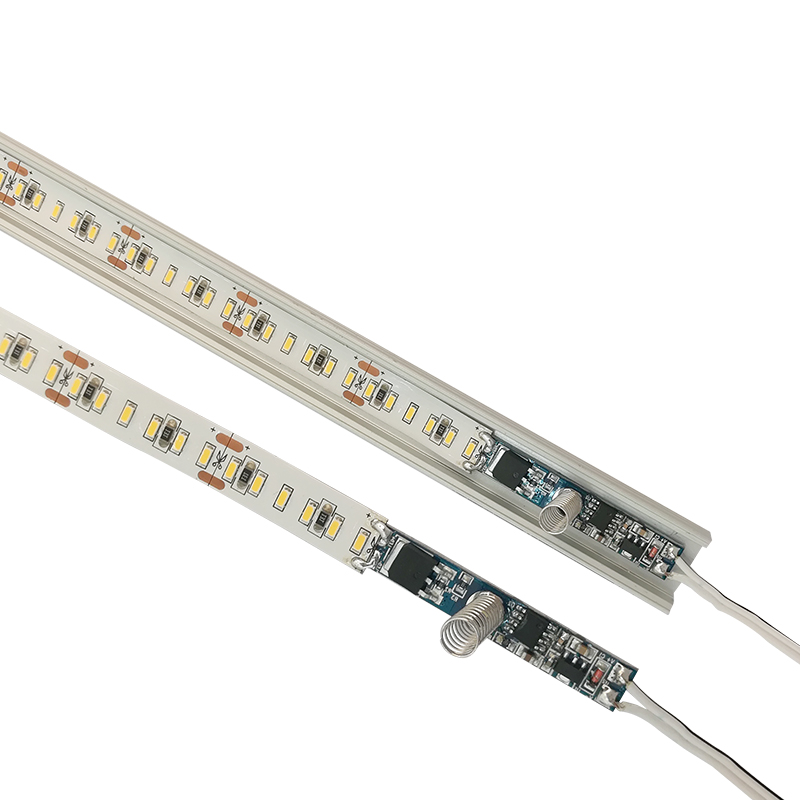

- Connections: V+ and V− input, LED+ and LED− output to the strip.
Operation
- The conductive spring must be covered by an insulating material such as glass, plastic or ceramic, up to 3 mm thick.
- Off when the power is first connected.
- A quick touch (under 550 ms) switches the light on or off with a 3-second brightness ramp; the light comes on at 90 % brightness.
- Holding the touch (over 550 ms) dims up or down continuously.
- Quick touches and holds can be combined at any time; the dimming level is memorised.
8.36
€
/pcs.
